CKZ-B系列

发布时间:2021-07-24

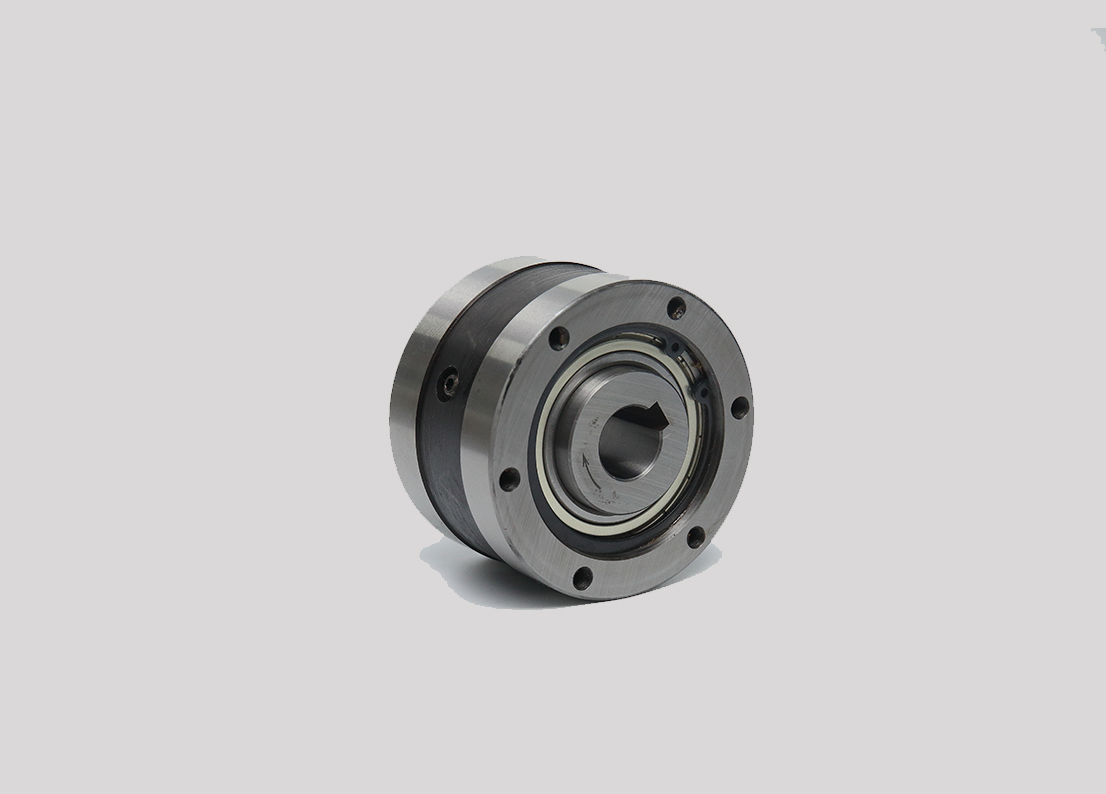

CKZ-B系列

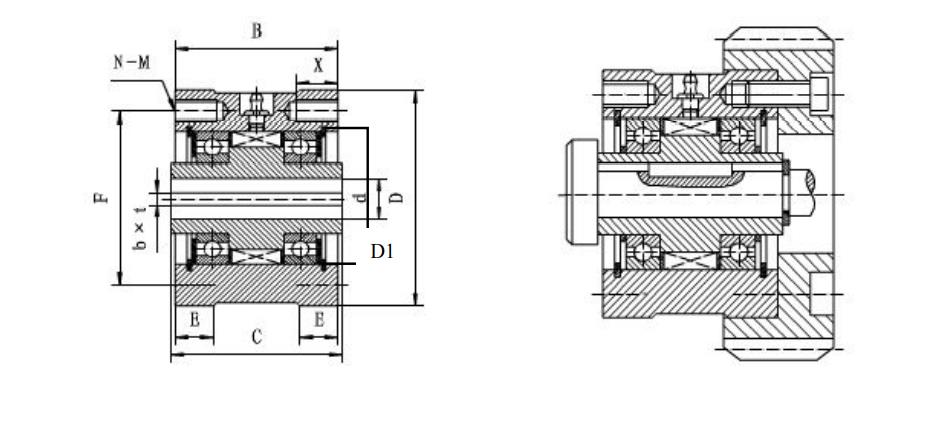

特性及应用:CKZ-B 系列为楔块式单向离合器,内含两套滚珠轴承支撑。依照不同需要,出厂时内含 润滑油或润滑脂。内环与轴用键联结,外环为 h7 公差与机壁 H7 公差配合,并用螺孔联结。 常用在包装、运输、冶金矿山等机械上。防止逆转或用于低速楔合、中低速超越的双动力系统。

] Characteristics and application: CKZ - B series for wedge type one-way clutch, contains two sets of ball bearing support.According to different needs, factory with lubricating oil or grease.Inner ring and the shaft with a key link, outer ring for the h7 tolerance and machine wall h7 tolerance matching, and the screw hole.Commonly used in packing machinery, transportation, metallurgy, mining, etc.To prevent reverse or used in wedge at low speed, low speed beyond .
